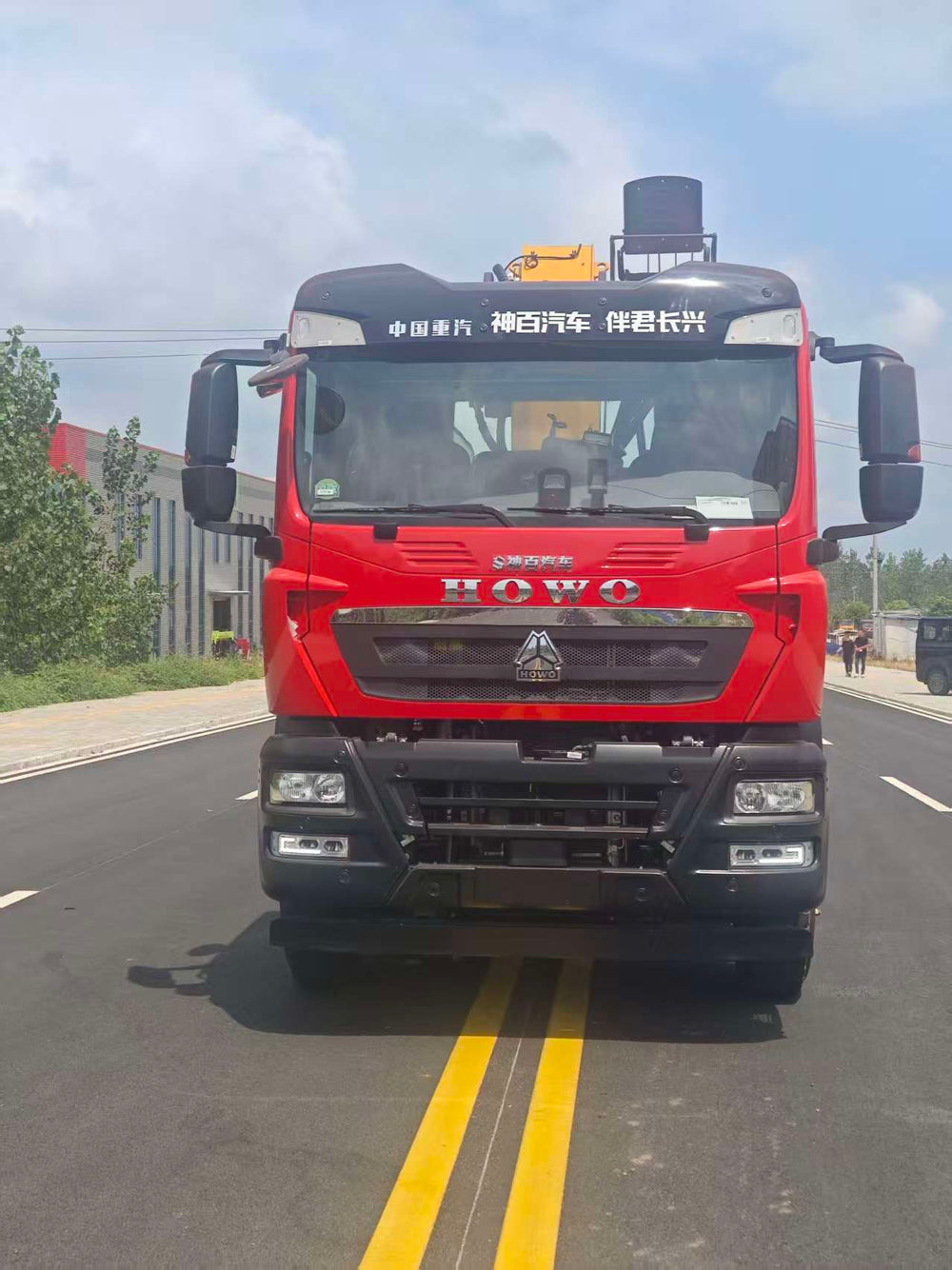

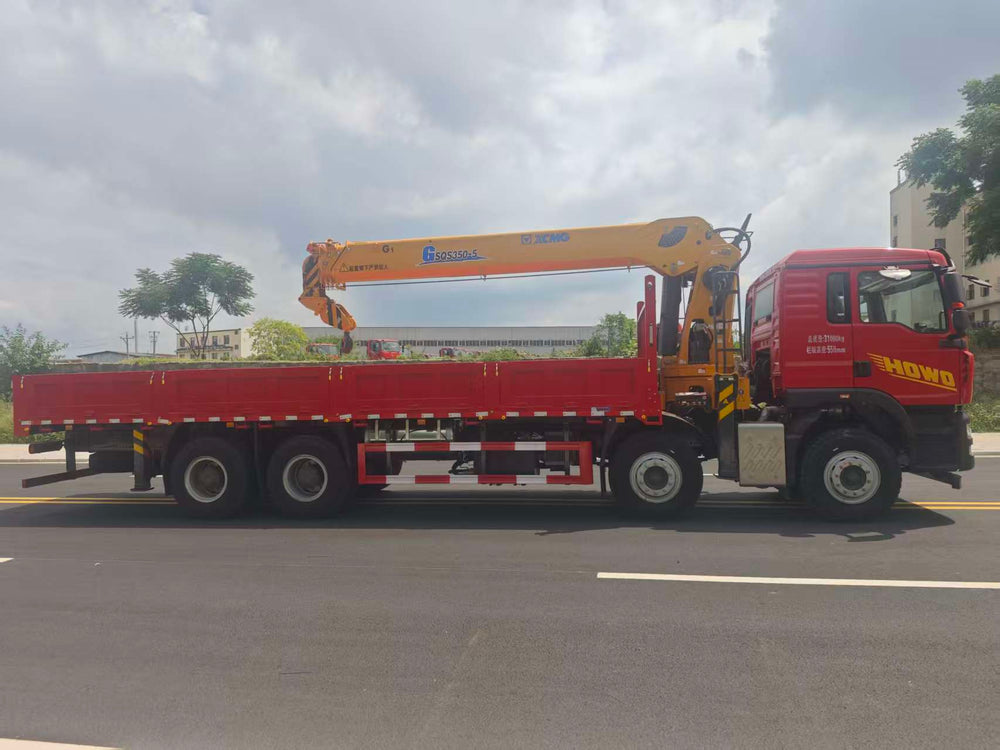

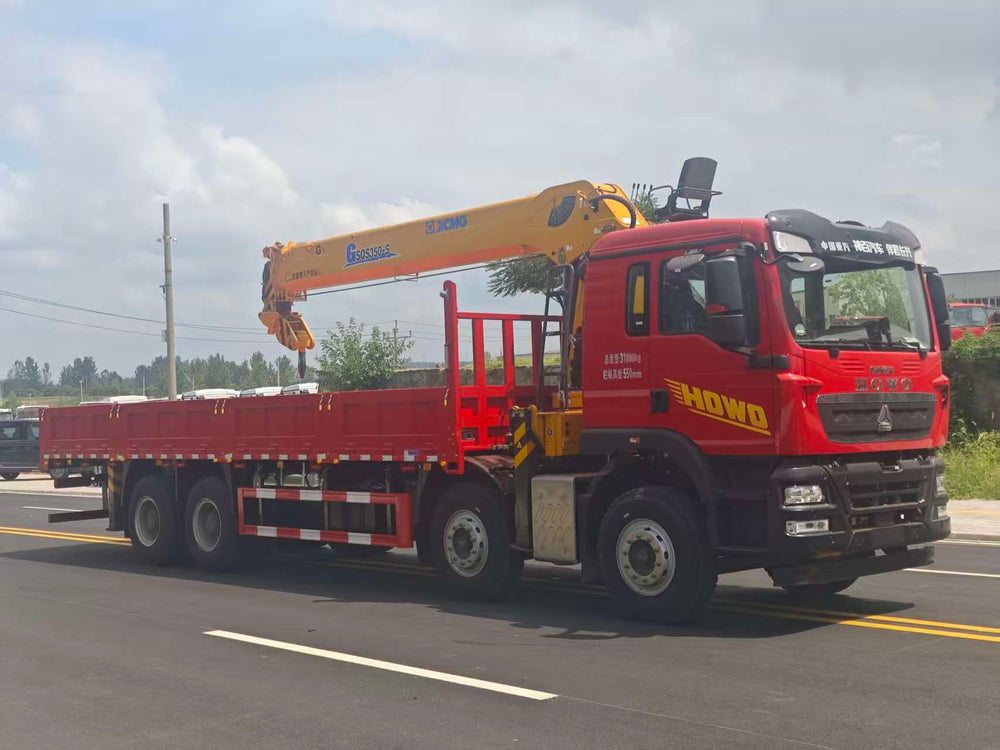

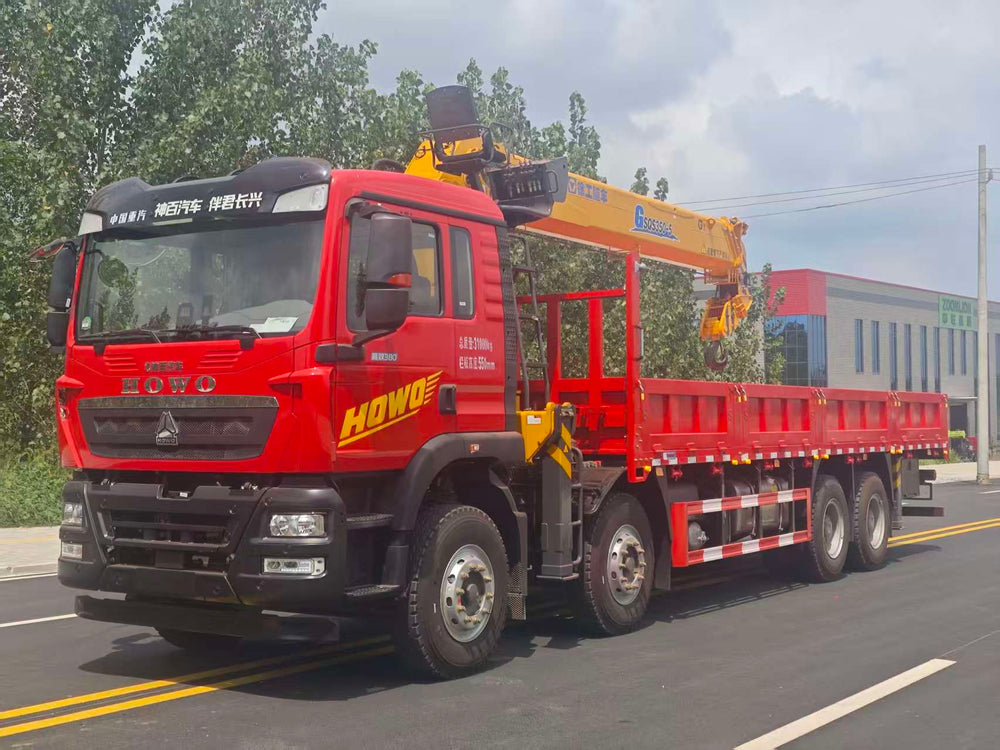

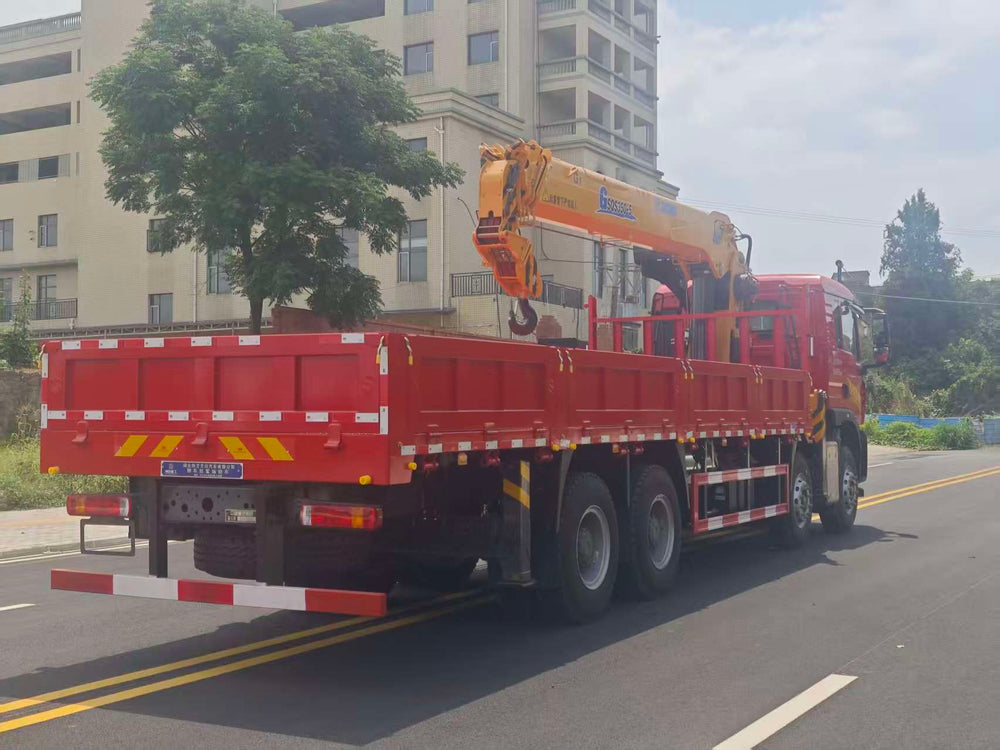

HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
Request a Quote Now
Chassis Specifications
| Brand | HOWO TX New Generation — Front 4 Rear 8 (8x4) |
| Engine | Weichai WP8T 380HP, 8.2L Displacement, Euro VI |
| Cab | TX-K Extended Cab (1.5-row) — Woying Edition |
| Gearbox | HW25712XSTL 12-Speed Transmission + HW70 Flange-type PTO |
| Front Axle | VGD75 Self-adjusting Arm Front Axle (Drum Brake) |
| Rear Axle | MAT16ZG / MCX16ZG Self-adjusting Arm Twin Rear Axles (Drum Brake) — 16-Ton Wheel-side Reduction Axle with Triple Differential Lock |
| Axle Ratio | 4.803 |
| Frame | Triple-layer Frame (8+5+8 / 318mm) |
| Suspension | Front & Rear Standard Multi-leaf Springs (11/11/12) |
| Tires | 11.00R20 Mixed Tread / 18PR |
| Fuel Tank | 400L |
| Safety | AEBS + ABS (4S/4M) + ESC |
Standard Equipment
- Multi-function steering wheel
- Electric heated rear-view mirrors
- Driver airbag seat (aviation-grade air suspension) + co-pilot simplified seat + middle seat
- 10.1-inch Full HD LCD center console (MP5)
- High-position all-metal three-section bumper
- Manual cab tilt
- 4-point floating cab with international-standard collapsible safety technology
- Optional under-cab start/stop switch
- V-type thrust rod for optimal body stability
Key Advantages
- Weichai 8T 380HP engine — powerful and fuel-efficient
- HOWO 12-speed gearbox — engine, gearbox and axle integrated development for superior compatibility
- Genuine German MAN-origin cab structure
- Triple-layer frame (8+5+8/318) with engineering-grade leaf springs and 4-bolt saddle clamps — best-in-class torsional rigidity on complex terrain
- SINOTRUK proprietary dual 16-ton wheel-side reduction rear axles with triple differential lock — handles all complex road conditions with ease
- 4-point floating cab with collapsible safety technology for occupant protection in emergencies
Superstructure — XCMG 16TONS-5-Section Straight Boom Crane
- Crane brand: Sany
- Lifting capacity: 14 tons
- Boom: 5-section straight telescopic boom, max length 19 meters
- Upper cab operation
- 2nd section single-extend boom
- Double front outriggers (dual hydraulic cylinders)
- OEM radiator plunger pump
- Planetary slewing mechanism (plunger motor)
- Winch (plunger motor)
