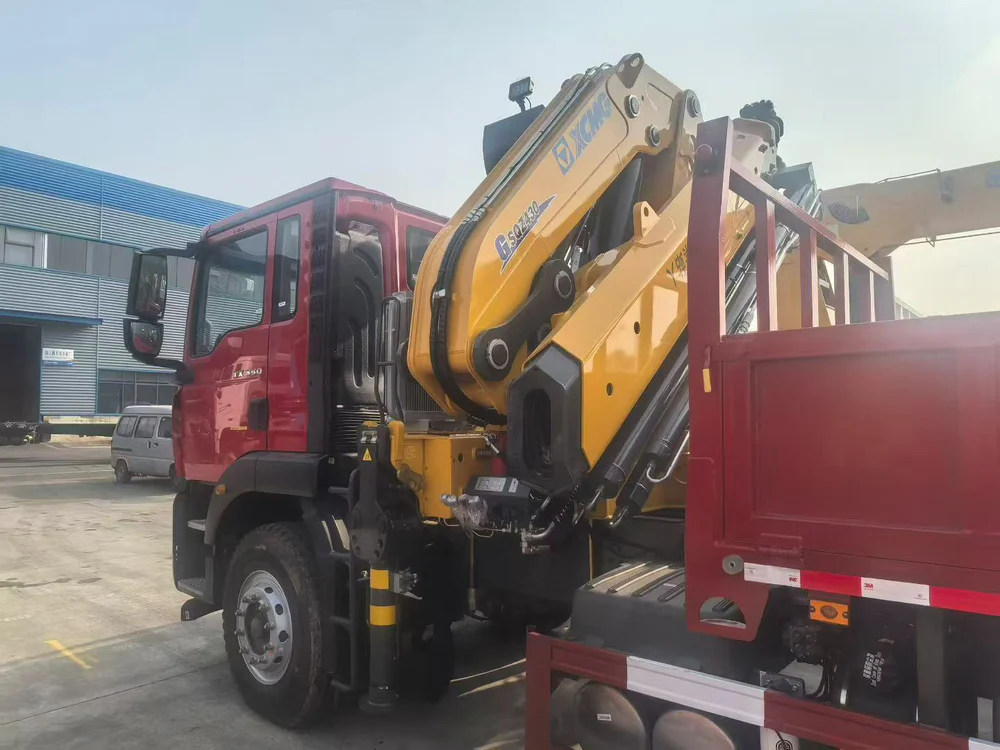

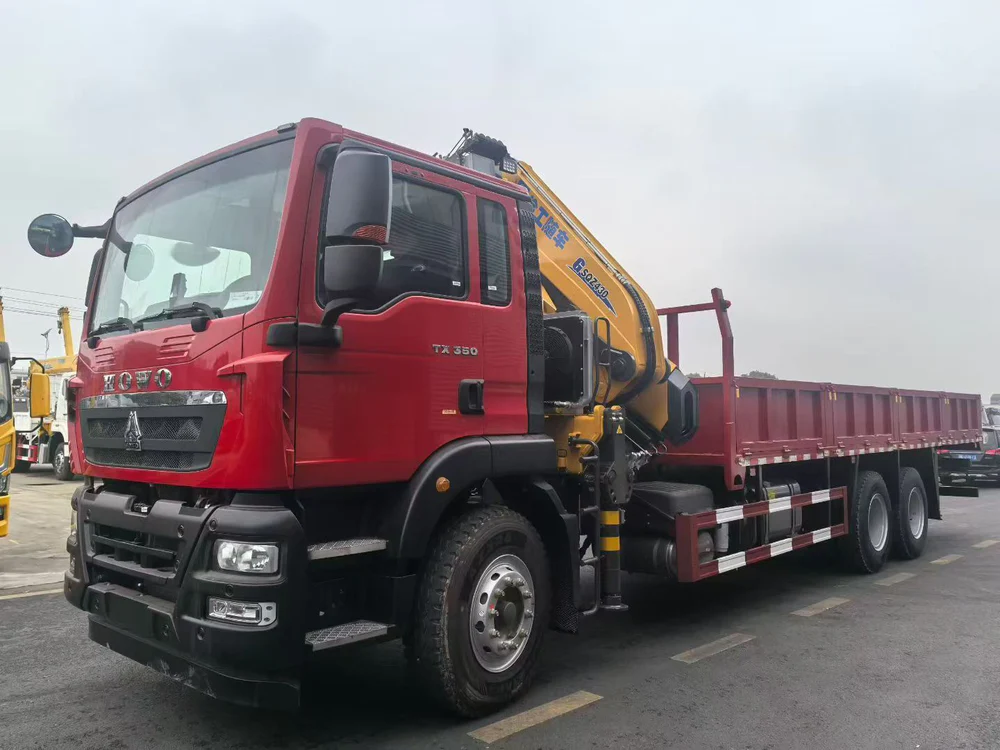

Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
Request a Quote Now
| Configuration Category | Detailed Parameters |
|---|---|
| Basic Vehicle Information | Model: Sinotruk Howo TX 6×4 (Rear Eight-Wheel) Knuckle Boom Crane Truck; Drive Form: 6×4 (3 axles, rear double axles); Emission Standard: National VI (Euro VI); Gross Vehicle Mass (GVW): 31000kg; Curb Weight: Approximately 18500kg; Rated Payload: Approximately 12500kg; Overall Vehicle Dimensions (L×W×H): Approximately 12000×2550×3850mm; Wheelbase: 3800+1350mm (adjustable on demand); Application Scenarios: Engineering hoisting, equipment installation, building materials transportation, power construction, municipal engineering and other medium and heavy-duty hoisting operations. |
| Chassis Configuration (Howo TX) | 1. Engine: Weichai WP9H350E62 inline six-cylinder diesel engine, 350HP (257kW), displacement 9.5L, maximum torque 1400N·m@1200-1600rpm, adopting high-pressure common rail + EGR + DOC + DPF + SCR National VI emission technology, with strong power and good fuel economy, suitable for heavy-duty working conditions; 2. Gearbox: Fast 10JSD160T 10-speed manual transmission (with synchronizer), smooth shifting, strong bearing capacity, suitable for long-term heavy-duty operations; 3. Power Take-Off (PTO): Original flange-type PTO, dedicated to driving the crane hydraulic system, with stable power output; 4. Axles: 7.5-ton reinforced integral front axle, double 16-ton heavy-duty wheel-side reduction rear axles (Qingte/Fangsheng), with outstanding bearing capacity, wear resistance and durability; 5. Speed Ratio: 4.875 engineering heavy-duty speed ratio (optional 4.444/5.286), suitable for complex road conditions and hoisting operation needs; 6. Suspension: Front 10-leaf, rear 12-leaf+4 reinforced multi-leaf spring suspension, excellent shock absorption performance, stable driving, suitable for uneven roads such as construction sites; 7. Tires: 11.00R20 18PR all-steel wear-resistant tires, puncture-resistant and wear-resistant, suitable for complex outdoor operating environments; 8. Cab: Howo TX standard cab, mechanical full-floating suspension, hydraulic tilting (easy for maintenance), original air conditioning, power windows, central locking, airbag shock-absorbing seat (adjustable), wide berth, LCD instrument, cruise control, ABS anti-lock braking, driving recorder, exhaust brake, ensuring driving comfort and safety; 9. Frame: 300mm (8+6+6) straight-through three-layer frame with flange, reinforced structure, strong bearing capacity, suitable for crane installation and heavy-duty transportation. |
| Upper Mounting Crane Configuration (XCMG 12-ton 5-Section Knuckle Boom) | 1. Crane Brand and Model: XCMG original 12-ton 5-section knuckle boom crane (recommended model: XCMG G12T5), core components (hydraulic pump, motor, oil cylinder) are all XCMG original, with reliable quality and long service life; 2. Rated Tonnage: 12 tons, maximum lifting moment 320kN·m, suitable for medium and heavy-duty hoisting operations; 3. Boom Structure: 5-section telescopic knuckle boom, made of high-strength manganese steel, thickened boom wall design, strong bearing capacity and not easy to deform; 4. Key Parameters: Maximum working boom length 18.75 meters, maximum lifting height approximately 20.8 meters, wide operating coverage, meeting the needs of high-altitude and long-distance hoisting; 5. Hydraulic System: XCMG original high-pressure hydraulic system, working pressure 32MPa, equipped with 200L large-capacity oil tank and hydraulic oil radiator, effectively preventing hydraulic oil overheating, stable operation and low noise; equipped with safety components such as overflow valve and pressure relief valve to avoid hydraulic system failures; 6. Operation Mode: Full hydraulic control, supporting wireless remote control (effective distance ≥50 meters) + manual dual operation modes, flexible and convenient operation, accurate positioning, reducing manual labor intensity; 7. Rotation Performance: 360° continuous full rotation, rotation speed 0-2.5r/min, smooth rotation, no operation dead angle; 8. Outrigger Configuration: Double-sided hydraulic telescopic outriggers (double-section composite front outriggers), outrigger span approximately 7.6 meters, large support area, improving hoisting stability and effectively preventing vehicle rollover; 9. Safety Configuration: Equipped with moment limiter (real-time display of lifting moment, overload alarm and action cut-off), overload protection, anti-rebound device, emergency stop button (remote + manual dual control), fully ensuring operation safety; 10. Installation Position: Middle-mounted installation, reasonable center of gravity, not occupying the effective space of the cargo box, taking into account driving stability and hoisting safety; 11. Other Configurations: Original hydraulic oil radiator, dual pump, equipped with hoisting night lighting spotlights, suitable for night operation needs. |
| Cargo Box Configuration | Cargo Box Dimensions: 7.2m×2.45m×0.6m (engineering version); Material: National standard high-strength manganese steel, 3mm side plate and 5mm bottom plate thickened design, reinforced columns and dense cross beams, wear-resistant and impact-resistant, suitable for heavy-duty transportation at construction sites; Structure: Engineering version cargo box, upper welding and lower riveting robot full welding process, bottom bending inverted cross beams, dense detachable guardrails, easy for maintenance; Optional Configuration: Front-mounted hydraulic tipper function, large-flow hydraulic lifting system, stable and powerful lifting, convenient loading and unloading of sand, building materials and other materials, improving operation efficiency. |
| Vehicle Protection and Durability | 1. Anti-Corrosion Treatment: The whole vehicle adopts electrophoretic anti-corrosion process, thickened paint layer, rust-proof and corrosion-resistant, suitable for complex operating environments such as outdoor and humidity; 2. Crane Protection: The crane boom is equipped with anti-collision rubber pads, and the hydraulic oil pipes adopt high-pressure explosion-proof hoses and explosion-proof joints, safe and reliable; 3. Daily Maintenance: Reserved convenient maintenance channels, equipped with centralized lubrication system, reducing maintenance difficulty and later use cost; 4. Others: Full-vehicle high-voltage line protection, reinforced treatment of key parts of the chassis, improving the service life of the whole vehicle. |
| Core Advantages | 1. Power Matching: Weichai 350HP engine is perfectly matched with Fast 10-speed gearbox and heavy-duty axles, with strong power, which can easily meet the dual heavy-duty needs of hoisting and transportation; 2. Hoisting Performance: XCMG 12-ton 5-section knuckle boom crane, with sufficient boom length, stable bearing and flexible operation, suitable for multi-scenario hoisting operations; 3. Reliability: Both Howo TX chassis and XCMG crane are well-known brands, with mature technology, low failure rate and convenient maintenance; 4. Safety: Multiple safety protection devices, stable outrigger support, and guaranteed operation safety; 5. Adaptability: Suitable for various complex working conditions such as engineering construction, power emergency repair, and building materials transportation, with strong practicality. |
