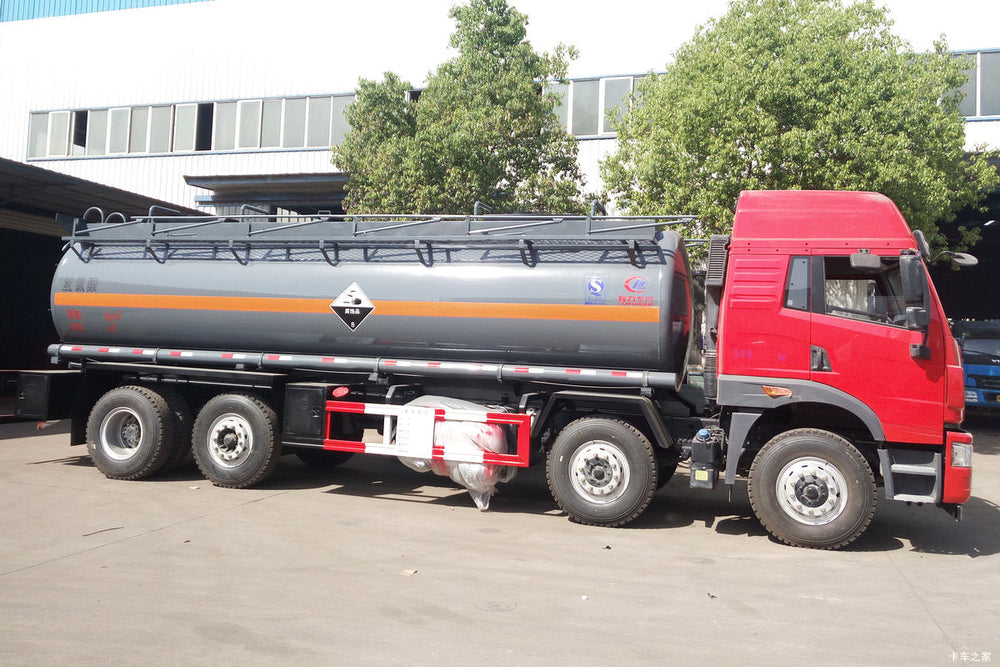

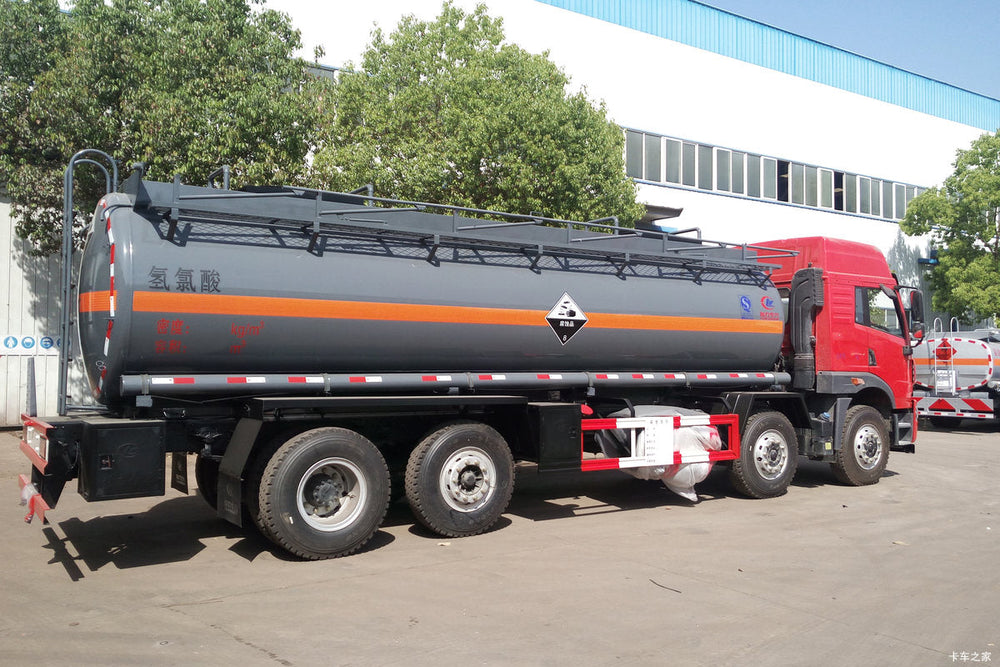

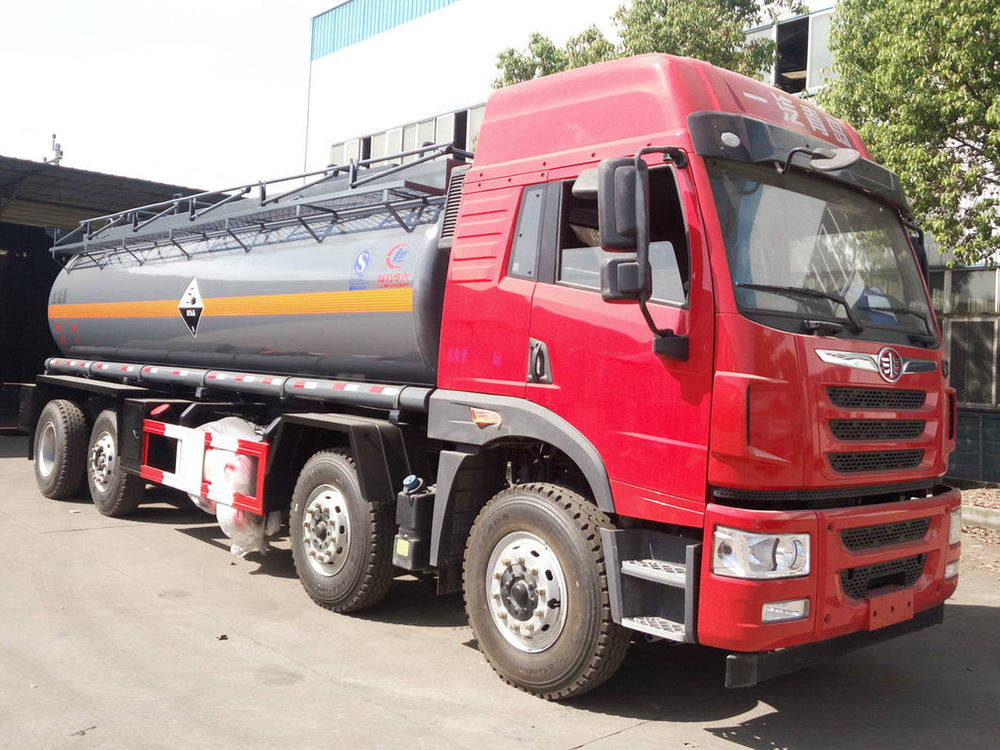

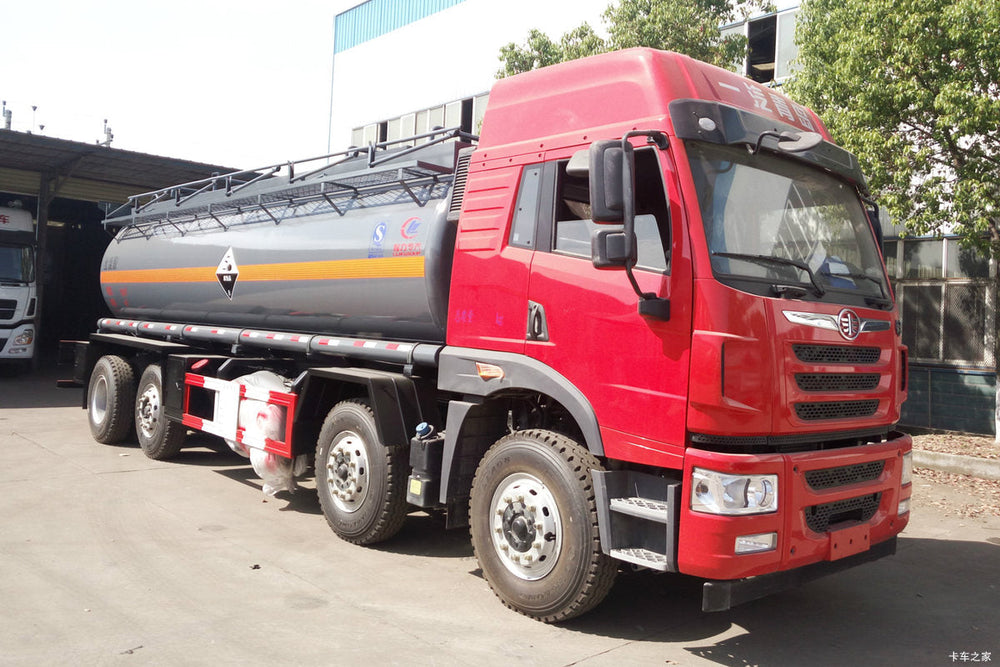

Qingdao FAW Jiefang HanV 260HP 8×2 Chemical Liquid Tanker
Request a Quote Now
| Category | Item | Detailed Specifications |
|---|---|---|
| 1. Basic Chassis Parameters | Chassis Model | Qingdao FAW Jiefang HanV 8×2 Medium & Heavy Duty Chassis |
| Drive Layout | 8×2 (2 front steering axles, 1 middle auxiliary lift axle, 1 rear driving axle) | |
| Gross Vehicle Weight (GVW) | 31000 kg | |
| Rated Payload | 18.17 tons | |
| Whole Vehicle Type | Corrosion Resistant Dangerous Goods Chemical Liquid Tanker (Class 8 Corrosive Substances) | |
| Transport Medium | Hydrochloric acid, sulfuric acid, caustic soda and other corrosive industrial chemicals | |
| 2. Powertrain Assembly | Engine Model | Xichai CA6DL1-26E5 National V Diesel Engine |
| Rated Horsepower | 260 HP | |
| Emission Standard | National V (Euro V) | |
| Transmission Gearbox | 9-speed Manual Heavy-duty Gearbox | |
| Fuel Type | Light Diesel Oil | |
| Fuel Tank | Large capacity aluminum alloy fuel tank | |
| 3. Chemical Tank Superstructure | Tank Dimension | Length 8.2m × Diameter Φ1.8m |
| Tank Material | Carbon steel tank body with thick anti-corrosion plastic lining (PP), seamless integral rolling forming | |
| Internal Structure | Multi-group anti-wave partition baffles to reduce liquid sloshing during transportation | |
| Top Fittings | Stainless steel anti-slip walkway with safety guardrail, sealed manhole cover, overflow protection valve & vacuum balance valve | |
| Loading & Unloading System | Anti-corrosion chemical pump, large-caliber quick disconnect corrosion-resistant pipelines, bottom emergency unloading valve | |

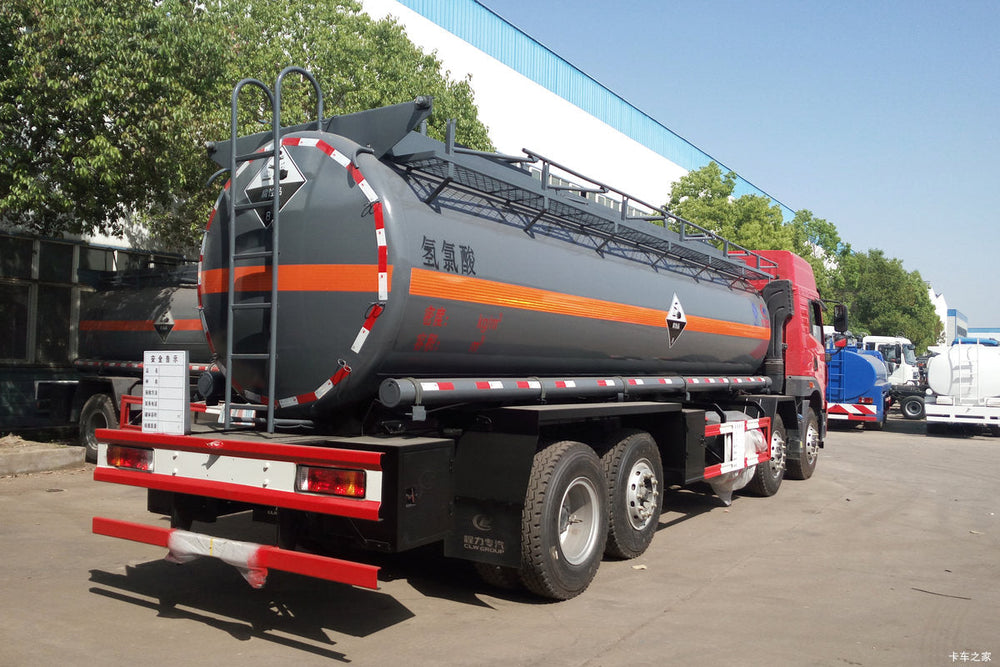

| Safety Marking | UN dangerous goods logo, Class 8 corrosive goods warning diamond sign, orange warning strip around tank body, full circle red-white reflective warning strips | |
| Rear Accessories | Stainless steel climbing ladder, rear operation platform, combined rear taillights | |
| 4. Special Dangerous Goods Safety Configuration | Anti-static System | Static conduction grounding wire, static elimination device |
| Emergency Protection | Emergency cut-off valve, leakage recovery tank, dedicated fire extinguisher bracket, safety operation notice board | |
| Anti-corrosion Performance | Full tank interior lining resistant to hydrochloric acid, phosphoric acid, liquid alkali and other corrosive media | |
| 5. Chassis & Running Gear System | Suspension System | Reinforced multi-leaf spring suspension with hydraulic shock absorbers; middle liftable auxiliary axle for light-load fuel saving |
| Brake System | Full air brake system, equipped with ABS anti-lock braking system + exhaust auxiliary brake | |
| Wheel Configuration | Single front tires, dual rear drive tires, heavy-duty forged steel wheel hubs | |
| Safety Auxiliary Parts | Red-white alternating anti-collision side guards, mudguards for all axles, side marker warning lamps | |
| 6. Cab Standard Configuration | Cab Type | Single-row wide-body heavy-duty comfort cab, bright red exterior |
| Exterior Features | Split large wide-angle rearview mirrors, integrated composite headlights, FAW Jiefang eagle logo on front grille | |
| Interior Equipments | Fabric upholstered seats, multi-speed adjustable windshield wipers, central storage compartments, standard manual air conditioning & radio audio system | |
| 7. Core Product Selling Advantages | Highlights | 1. 8×2 four-axle chassis with 18.17 tons legal payload, middle lift axle reduces tire wear and fuel consumption under empty/light load
|
