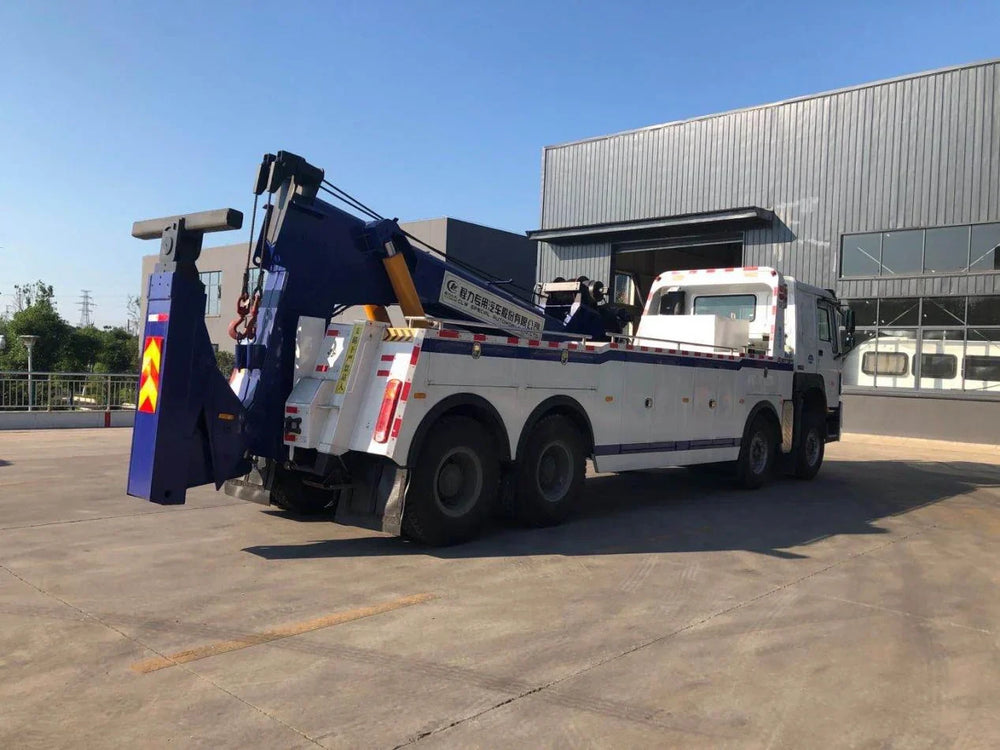

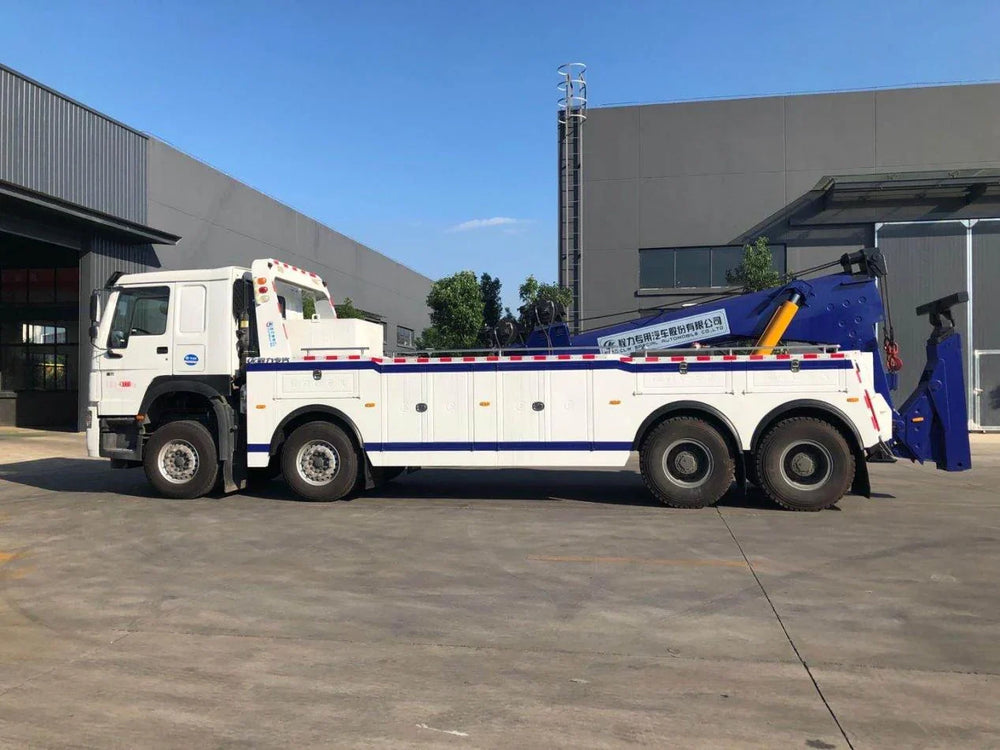

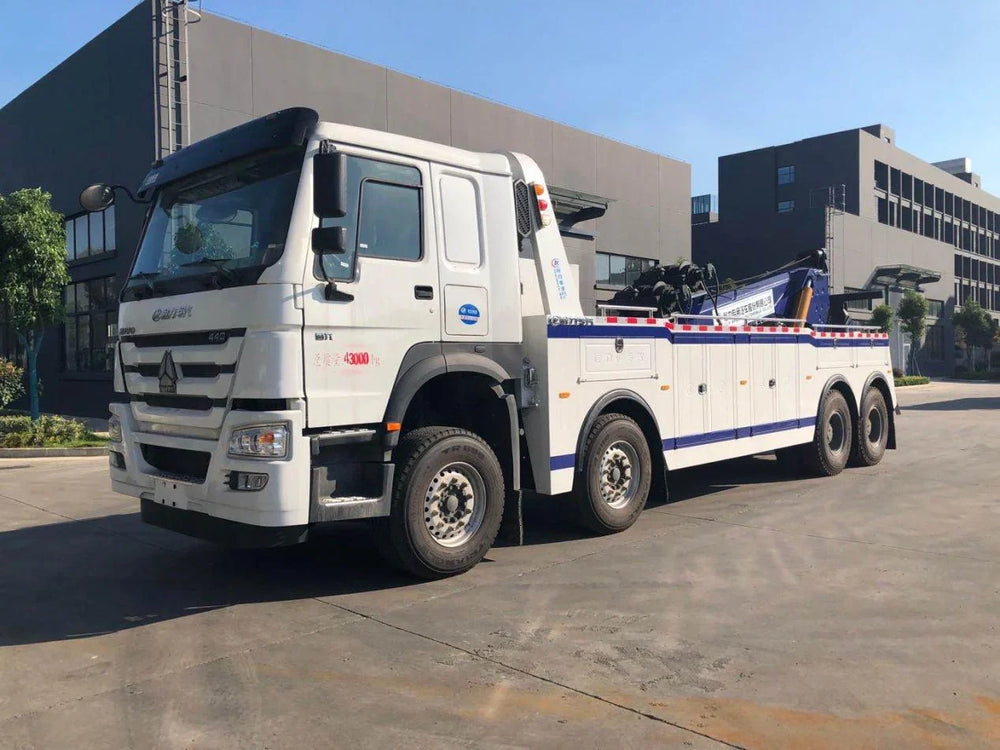

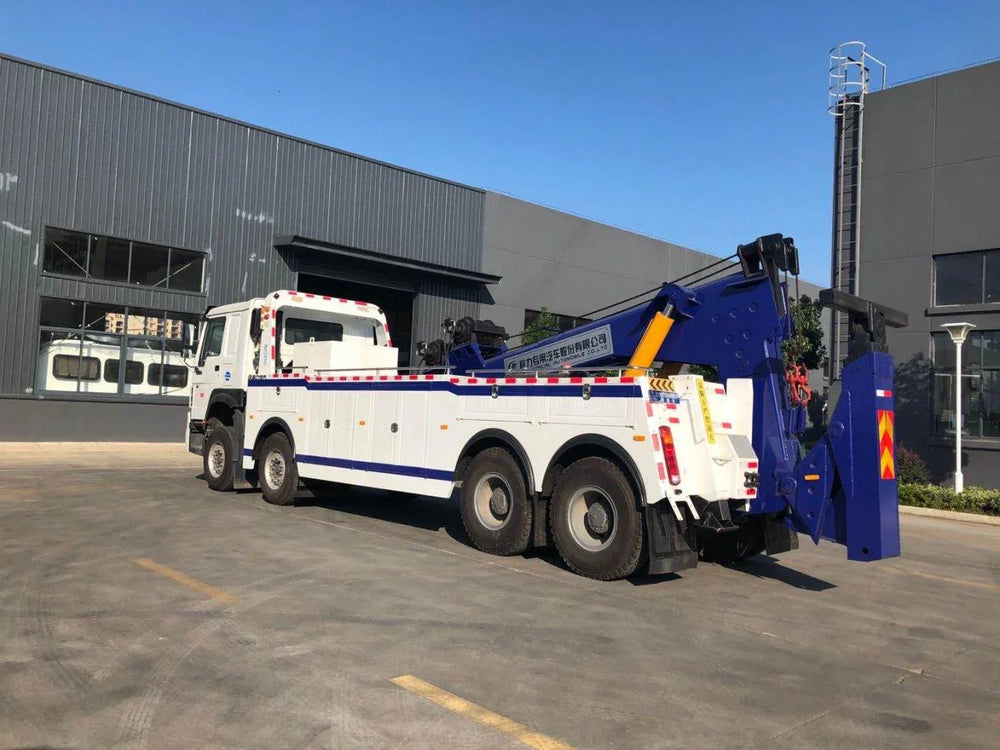

   Shenbai FAW TOW Truck (25T) – Standard Specification Sheet

   ---

   1. VEHICLE BASIC INFORMATION







   Parameter	Specification
   Vehicle Name	Shenbai FAW TOW Truck (25T)
   Vehicle Type	Heavy-Duty Towing & Recovery Wrecker (Tow-Drag Integrated Type)
   Overall Dimensions (L×W×H)	10,620 × 2,500 × 3,360 mm
   Total Mass (GVW)	25,000 kg (25 tons)
   Curb Weight (Kerb Mass)	18,720 kg
   Fuel Type	Diesel
   Emission Standard	China V (GB17691-2005, GB3847-2005)
   Drive Type	6×4 (Rear Dual Axle)

   ---

   2. CHASSIS PARAMETERS







   Parameter	Specification
   Chassis Brand	FAW Jiefang J6
   Chassis Model	CA5250JSQP63K1L5T1E5
   Cab Type	FAW J6M Flat Roof Cab / J6L Flat Roof Cab
   Axle Configuration	3 axles (Rear Dual Axle)
   Wheelbase	5,800 + 1,350 mm
   Tire Specification	10.00R20 (11 tires including spare)
   Brake System	Spring Brake (Air Brake with ABS)
   Front Axle Capacity	5 tons
   Rear Axle Capacity	10 tons

   ---

   3. ENGINE PARAMETERS







   Parameter	Specification
   Engine Model	CA6DK1-28E5
   Manufacturer	FAW (China First Automobile Works)
   Displacement	7,146 ml
   Horsepower	285 HP
   Emission Standard	China V / Euro V equivalent

   ---

   4. TRANSMISSION PARAMETERS







   Parameter	Specification
   Transmission Type	Manual
   Transmission Model	10-speed (FAW 10-speed transmission)
   Alternative	8-speed (Shaanxi Tooth 8-speed)

   ---

   5. TOWING & RECOVERY EQUIPMENT (UPPER BODY)







   Parameter	Specification
   Upper Body Type	25T Integrated Tow-Drag Body (or 20T optional upgrade)
   Maximum Towing Capacity	25 tons
   Maximum Lifting Capacity	18 tons
   Maximum Lifting Height	6,500 mm
   Boom Type	2-section Hexagonal Boom
   Towing Arm Type	3-section Towing Arm
   Winch	2 × 10-ton Hydraulic Winches
   Wire Rope Length	45 meters
   Wire Rope Diameter	18 mm
   Hydraulic System	Imported hydraulic system
   Control System	Remote control + Dual-side linkage operation

   ---

   6. STANDARD EQUIPMENT & ACCESSORIES







   Item	Quantity
   Steel Forks	4 sets
   Tow Fork Set	1 set
   Steel Plate Lifting Tow Fork	1 set
   Tire Clamping Device	1 set
   Long Row Engineering Warning Light	1 set (Yellow LED)
   Auxiliary Light Set	1 set
   Auxiliary Air Pipe Set	1 set
   Binding Chains	2 pieces
   Tool Kit	1 set

   ---

   7. PERFORMANCE FEATURES







   Feature	Description
   Boom Structure	Hexagonal boom design – superior strength and stability vs. square-section booms
   Hydraulic Technology	Italian multi-way valves & balance valves; German technology hydraulic cylinders & fittings
   Seals	Full imported sealing components
   Chassis Reinforcement	Reinforced cross-member fixation for enhanced load capacity
   Cab Comfort	Factory air conditioning, power steering, ABS standard

   ---

   Notes:

   1. Specifications may vary depending on the specific configuration, upper body option (20T vs 25T), and production batch.

   2. Emission standards can be upgraded to China VI / Euro VI upon request.

   3. Dimensions and weights are approximate and subject to final manufacturing tolerances.

   4. The 25-ton rating refers to the maximum towing capacity; actual performance depends on road conditions and the weight of the vehicle being towed.

   5. Shenbai (Hubei Shenbai Special Automobile Co., Ltd.) is a manufacturer of special-purpose vehicles including truck-mounted cranes, wreckers, and low-bed trailers
