1. Chassis Configuration
| Parameter |
Value |
| Engine Model |
YN25PLUS160A (Yunnei) |
| Engine Power |
160 HP |
| Transmission |
C6J45TB Aluminum Gearbox |
| Frame Specification |
180mm / 4.5mm Single-Layer Frame |
| Front Axle |
HDZ 2.2 Ton, Maintenance-Free |
| Rear Axle |
5 Ton Rated Load, Final Drive Ratio 4.875, Maintenance-Free |
| Fuel Tank |
120L Aluminum Fuel Tank |
| Tire Specification |
7.50R16LT / 14PR |
| Cab Type |
G200 Single-Row 2020 Cab |
| Driver Seat |
Fixed Driver Seat |
| Cab Interior |
Electric Windows, Manual Air Conditioner |
| Instrument Panel |
4.5-inch Color Combination Instrument |
| Steering Wheel |
Multifunctional Steering Wheel with Cruise Control |
| Door Lock |
Central Door Locking |
| Rearview Mirror |
Lever-Type Rearview Mirror |
| Headlights |
Halogen Headlights |
| Remote Lock |
T-Box Remote Vehicle Lock |
| Suspension |
Fixed Suspension |
| Sun Visor |
Driver-Side Sun Visor |
| PTO |
Equipped with Power Take-Off |
| Brake System |
Air-Over-Hydraulic Spring Brake |
| Spare Tire |
Equipped |
| PTO Reminder |
PTO Buzzer Warning |
2. Tank Body & Insulation System
| Parameter |
Value |
| Tank Material |
Carbon Steel Plate |
| Tank Volume |
6 m³ |
| Insulation Structure |
Three-Layer Insulation |
| Outer Insulation Layer |
Stainless Steel Cladding |
| Internal Insulation Filling |
Flame-Retardant Rock Wool |
| Insulation Thickness |
30 mm |
3. Asphalt Pump & Hydraulic System
| Parameter |
Value |
| Asphalt Pump Type |
Insulated Asphalt Pump RCB18/0.6-65F-T |
| Asphalt Pump Capacity |
18 m³/h |
| Asphalt Pump Drive Motor |
Cycloidal Motor 2K-80 |
| Hydraulic Pump |
F563 Full Cast Iron Gear Pump |
| Hydraulic Flow Control |
Imported Electro-Hydraulic Proportional Flow Regulating Valve (USA) |
4. Heating & Temperature Control System
| Parameter |
Value |
| Burner Brand & Model |
Riyadh G10 (Imported from Italy) |
| Heating Method |
Full-Process Heat-Conducting Oil Heating (Tank & Pipelines) |
| Temperature Control Module |
Imported PLC Temperature Control Module, Computer Control (Taiwan) |
| Heat-Conducting Oil Pump |
BRY20-20-125 (Botou, Hebei) |
| Radiator |
AH1012-CD24-A |
| Auxiliary Power |
3500W Gasoline Generator |
5. Spray Bar & Nozzle System
| Parameter |
Value |
| Spray Width Range |
0.2 m – 4 m (triple overlap) |
| Spray Volume Range |
0.2 – 2 kg/m² |
| Pneumatic Cylinders |
22 sets of stainless steel full-pneumatic cylinders |
| Nozzles |
Pure copper nozzles with imported seals (leak-proof) |
| Spray Bar Design |
Synchronized same-layer spray bar with through rotary joint heating; asphalt circulation on both sides; recyclable asphalt; no metal hoses |
6. Control System
| Parameter |
Value |
| Spray Volume Controller |
Intelligent Integrated Controller (IP67 protection grade) |
| Control Feature |
Spray volume automatically linked with vehicle speed |

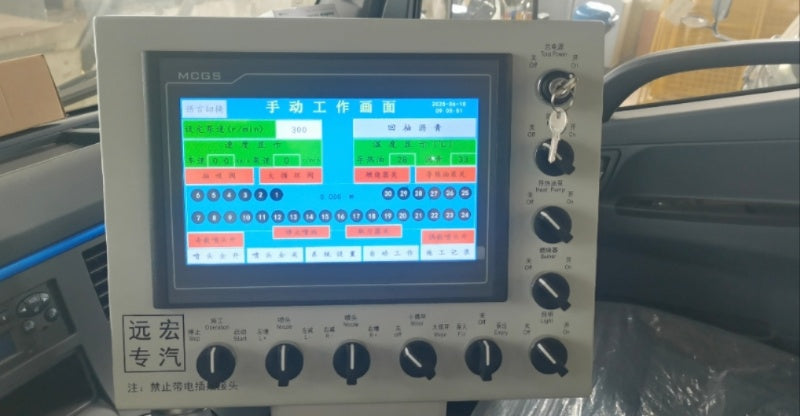

| In-Cab Display |
Kunlun Tongtai 10-inch Touch Screen Control System |
| Pressure Control |
Computer-automatic hydraulic pressure distribution |
| Pump Speed Control |
Adjustable asphalt pump speed |
| Temperature Controller |
Independent temperature controller |
| Air Pressure Display |
Equipped |
| Spray Cylinder Control |
One cylinder per valve (one-to-one control) |
7. Standard Features & Accessories
| Feature |
Description |
| Full Asphalt Circulation |
Full-vehicle asphalt circulation, one-key asphalt pump suction/discharge function |
| Automatic Cleaning |
One-key asphalt return, nozzle cleaning and hand-gun cleaning function via operation screen |
| Level Gauge |
Float-type level gauge installed inside tank |
| Tank Thermometer |
Bimetal thermometer installed outside tank body |
| Pump Thermometer |
External metal thermometer on asphalt pump |
| Fastener Standard |
All fasteners, connectors, transmission parts, support parts, sealing parts and elastic parts comply with GB/T national standards |
8. Applicable Spray Media
| Medium Type |
Description |
| Emulsified Asphalt |
Suitable |
| Modified Emulsified Asphalt |
Suitable |
| Modified Asphalt |
Suitable |
| Hot Asphalt |
Suitable |
