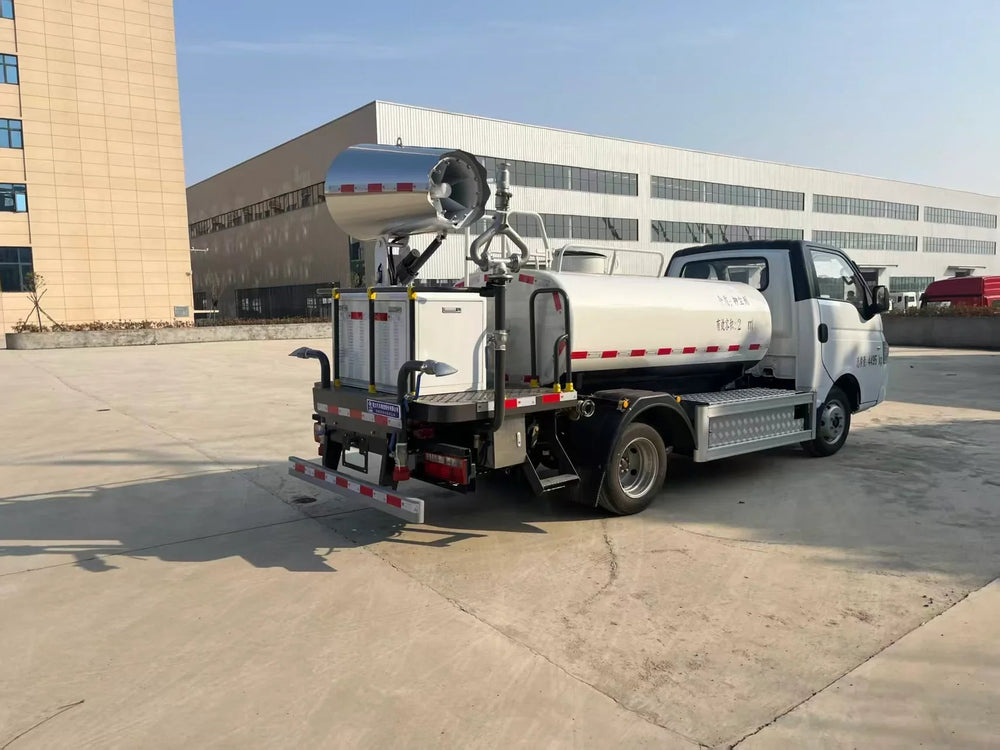

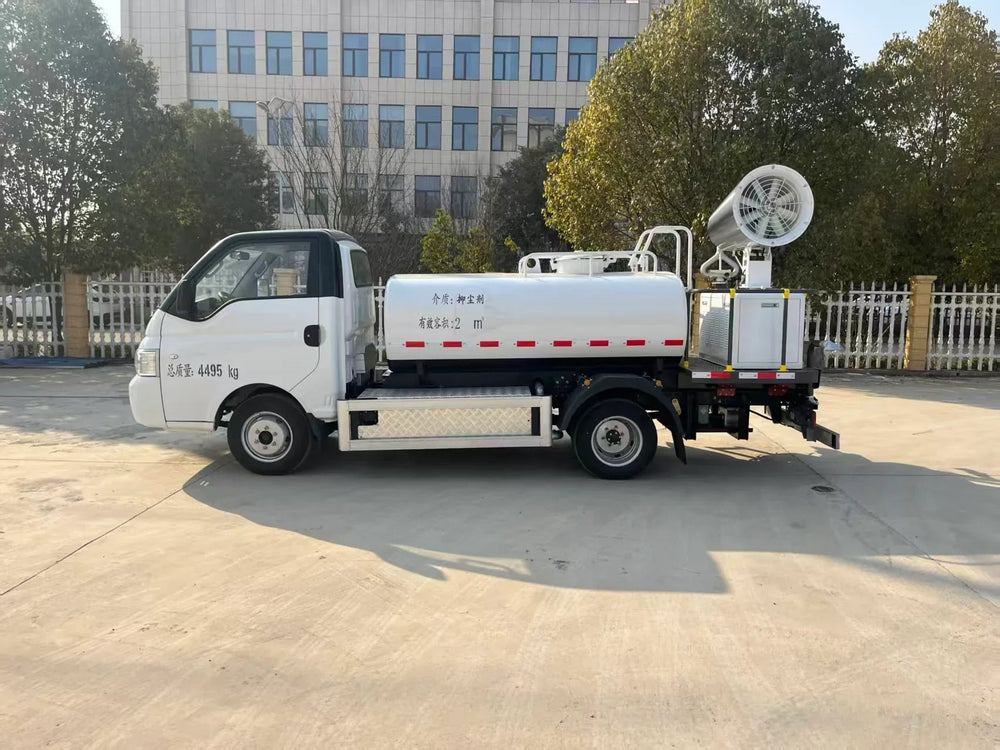

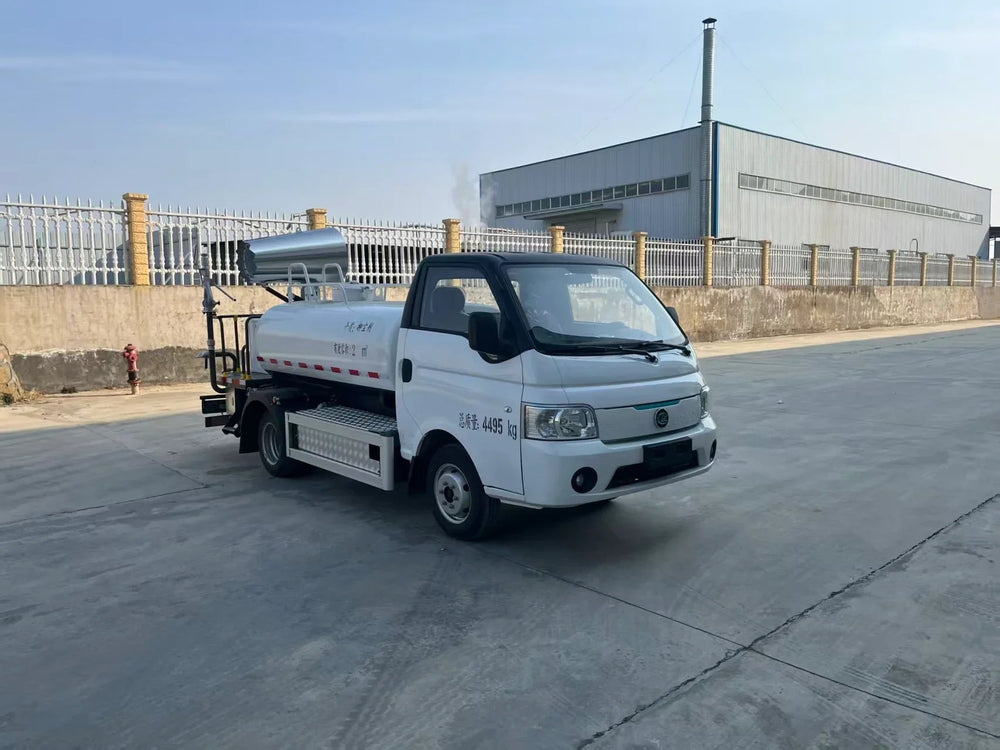

4.5T EV Multi-purpose Dust Control Truck
Eco-friendly electric sanitation truck with water sprinkling, high-pressure washing & fog cannon for dust suppression.
|
Parameter |
Core Specification |
|---|---|
| 1. Whole Vehicle Basic Parameters | |
| Vehicle Model | CL5040TDYBEV Battery Electric Multi-Function Dust Suppression Truck |
| Gross Vehicle Weight (GVW) | 4495 kg |
| Curb Weight | 2850 kg |
| Payload Capacity | 1515 kg |
| Rated Passenger Capacity | 2 persons |
| Cab Model | Kaima |
| Overall Dimensions (L×W×H) | 5800×1910×2550 mm |
| Wheelbase | 2800 mm |
| Front / Rear Overhang | 1210 / 1790 mm |
| Front / Rear Track Width | 1405 / 1240 mm |
| Approach / Departure Angle | 21° / 10° |
| Minimum Ground Clearance | 185 mm |
| Minimum Turning Diameter | 13 m |
| Tire Specification | 185R15LT 8PR |
| 2. Chassis & Electric Powertrain Parameters | |
| Chassis Manufacturer | Chengli Automobile Group Co., Ltd. |
| Chassis Model | CL1041JBEV |
| Drive Configuration | 4×2 |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Manufacturer | Gotion High-tech |
| Battery Capacity | 57.6 kWh |
| Nominal Voltage / Capacity | 384V / 150Ah |
| Battery System Energy Density | 140.3 Wh/kg |
| Drive Motor Manufacturer | Chengdu Yiwei New Energy Automobile Co., Ltd. |
| Drive Motor Model | TZ210XSZ03 |
| Rated / Peak Power | 55 / 110 kW |
| Rated / Peak Torque | 150 / 318 Nm |
| Rated / Peak Speed | 3500 / 12000 rpm |
| Maximum Speed | 90 km/h |
| Driving Range | 265 km (40km/h constant speed) |
| Maximum Gradeability (Fully Loaded) | 25% |
| Fast Charging Time (20%-100% SOC) | 1.0h (single-gun fast charge) |
| 3. Specialized Upper Equipment Parameters | |
| Water Tank Dimensions (L×Major Axis×Minor Axis) | 2400×1400×800 mm |
| Certified Effective Water Tank Volume | 2 m³ |
| Total Water Tank Volume | 2.1 m³ |
| Upper Equipment Motor Rated Power | 10 kW |
| Upper Equipment Motor Rated Speed | 1500 r/min |
| Low-Pressure Water Pump Brand | Hangzhou Weilong |
| Water Pump Model | 50QZR-15/45N |
| Fog Sprayer Nozzle Quantity | 16 pcs |
| Fog Sprayer Horizontal Range | 30-40 m |
| Front Flushing Width | ≥14 m |
| Rear Sprinkling Width | ≥8 m |
| Water Cannon Range | ≥20 m |
| Sprinkling Speed | To be supplemented (no value provided in original parameters) |
